 Steel Butt-Welding Pipe Fittings system >> Three and four >> Concentric Reducer Connector

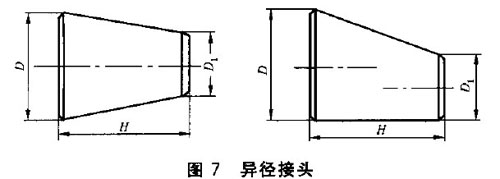

异径接头尺寸

公称尺寸
DN
坡口处外径
端面至端面
H
大端D
小端D1
I系列
II系列
I系列
II系列
150*125
168.3
159
141.3
133
140
150*100
168.3
159
114.3
108
140
150*90
168.3
--
101.6
--
140
150*80
168.3
159
88.9
89
140
150*65
168.3
159
73.0
76
140






200*150
219.1
219
168.3
159
152
200*125
219.1
219
141.3
133
152
200*100
219.1
219
114.3
108
152
200*90
219.1
--
101.6
--
152






250*200
273.0
273
219.1
219
178
250*150
273.0
273
168.3
159
178
250*125
273.0
273
141.3
133
178
250*100
273.0
273
114.3
108
178






300*250
355.6
377
323.9
325
330
300*200
355.6
377
273.0
273
330
300*150
355.6
377
219.1
219
330
300*125
355.6
377
168.3
159
330






400*350
406.4
426
355.6
377
356
400*300
406.4
426
323.9
325
356
400*250
406.4
426
273.0
273
356
400*200
406.4
426
219.1
219
356






450*400
457
480
406.4
426
381
450*350
457
480
355.6
377
381
450*300
457
480
323.9
325
381
450*250
457
480
273.0
273
381
