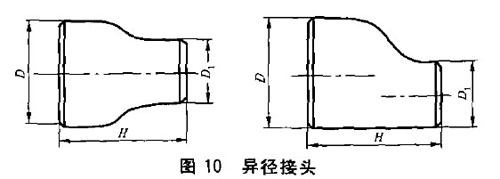

 Pieces of welded steel seamless pipe >> Reducing joint (the size of head) >> Eccentric Reducer Connector

表12异径接头尺寸                                                  单位为毫米
公称尺寸

DN

坡口处外径
端面至端面

H

大端D
小端D1
I系列
II系列
I系列
II系列
20×15
20×10

25×20
25×15

32×25
32×20
32×15

40×32
40×25
40×20
40×15

50×40
50×32
50×25
50×20

65×50
65×40
65×32
65×25

80×65
80×50
80×40
80×32

90×80
90×65
90×50
90×40
90×32
26.9
26.5

33.7
33.7

42.4
42.4
42.4

48.3
48.3
48.3
48.3

60.3
60.3
60.3
60.3

73.0
73.0
73.0
73.0

88.9
88.9
88.9
88.9

101.6
101.6
101.6
101.6
101.6
25
25

32
32

38
38
38

45
45
45
45

57
57
57
57

76
76
76
76

89
89
89
89

-
-
-
-
-

21.3
17.3

26.9
21.3

33.7
26.9
21.3

42.4
33.7
26.9
21.3

48.3
42.4
33.7
26.9

60.3
48.3
42.4
33.7

73.0
60.3
48.3
42.4

88.9
73.0
60.3
48.3
42.4

18
14

25
18

32
25
18

38
32
25
18

45
38
32
25

57
45
34
32

76
57
45
38

-
-
-
-
-
38
38

51
51

51
51
51

64
64
64
64

76
76
76
76

89
89
89
89

89
89
89
89

102
102
102
102
102
